DISCOVERY-IT SCIENCE (EPITHELIAL TISSUE OF ONION) OC 👨‍🏫👨‍🎓🧫🔬

avatar
(Edited)
Have you ever thought what a cell looks like? Throughout this experiment you will learn to observe its structure in a simple way thanks to a vegetable that you surely have at home: an onion. The epidermis of the onion is formed by a thin thin and transparent layer that allows its cells to be easily observed through a microscope. For this reason, onions are ideal for understanding and analyzing cell morphology.🍀🌿🧅🧅🧅

¿Alguna vez has pensado cómo es una célula? A lo largo de este experimento aprenderás a observar su estructura de forma sencilla gracias a un vegetal que seguro tienes en casa: una cebolla. La epidermis de la cebolla está formada por una fina capa delgada y transparente que permite poder observar con facilidad sus células a través de un microscopio. Por esta razón, las cebollas resultan ideales para conocer y analizar la morfología celular.🧠🧠👀


WHY THE ONION?🙂🔬🧅🧅⛔


The epidermis of the onion is the superficial tunic that covers the concavity of each layer that makes up the onion bulb. It is a very thin and transparent film that can be visualized if it is carefully removed with a tweezers. The skin of the onion has certain similarities with the cells of human beings. The only difference between the cells of an onion and those of a person is in the so-called cell wall, present only in plants that serves to protect the rest of the cells. The epidermis of the onion is ideal for studying cell morphology; Hence, the visualization of it is always one of the most frequent practices that are dictated in the subject of Biology. In addition, the assembly of the preparation is very simple and inexpensive.💥💥⛔💯
La epidermis de la cebolla es la túnica superficial que recubre la concavidad de cada capa que conforma el bulbo de la cebolla. Se trata de una película muy delgada y transparente que puede ser visualizada si se extrae cuidadosamente con una pinza. La piel de la cebolla guarda ciertas similitudes con las células de los seres humanos. La única diferencia existente entre las células de una cebolla y las de una persona se encuentra en la llamada pared celular, presente únicamente en los vegetales que sirve para proteger al resto de células. La epidermis de la cebolla es ideal para estudiar la morfología celular; de allí que la visualización de la misma es siempre una de las prácticas más frecuentes que se dictan en la asignatura de Biología. Además, el montaje de la preparación es muy sencillo y económico.✅✅🤔

46aP2QbqUqBqpx5c7Zikd2HFMqywJNqDeZVr22vYLLq3mmDMvC912rHeamQEXiUYc8W1m6jHtynNypZj6yjtJSv99K26.png

MATERIALS?🙂🔬🧅🧅⛔


We are going to need these materials to carry out the experiment, an onion can be white or purple, a knife and scalpel, an eyedropper, a tweezer, methylene blue or lugol, a tinderbox or phosphor, a slide and a coverslip! and last and foremost a microspop!😏😏
Vamos a necesitar estos materiales para realizar el experimento, una cebolla puede ser blanca o morada, un cuchillo y bisturi, un gotero, una pinza, azul de metileno o lugol, un yesquero o fosforo, portaobjeto y cubreobjeto! y por ultimo y mas importante un microspopio!😮😮

46aP2QbqUqBqpx5c7Zikd2HFMqywJNqDeZVr22vYLLq3mmDMvC912rHeamQEXiUYc8W1m6jHtynNypZj6yjtJSv99K26.png

PREPARATION AND ASSEMBLY?🙂🔬🧅🧅⛔


With great caution we are going to cut a piece of the onion, we do it in half, we separate it because we will need the fine tissue!😊😊
Con mucha precaucion vamos a cortar un pedazo de la cebolla lo hacemos por la mitad, la separamos porque necesitaremos el tejido fino!🔪

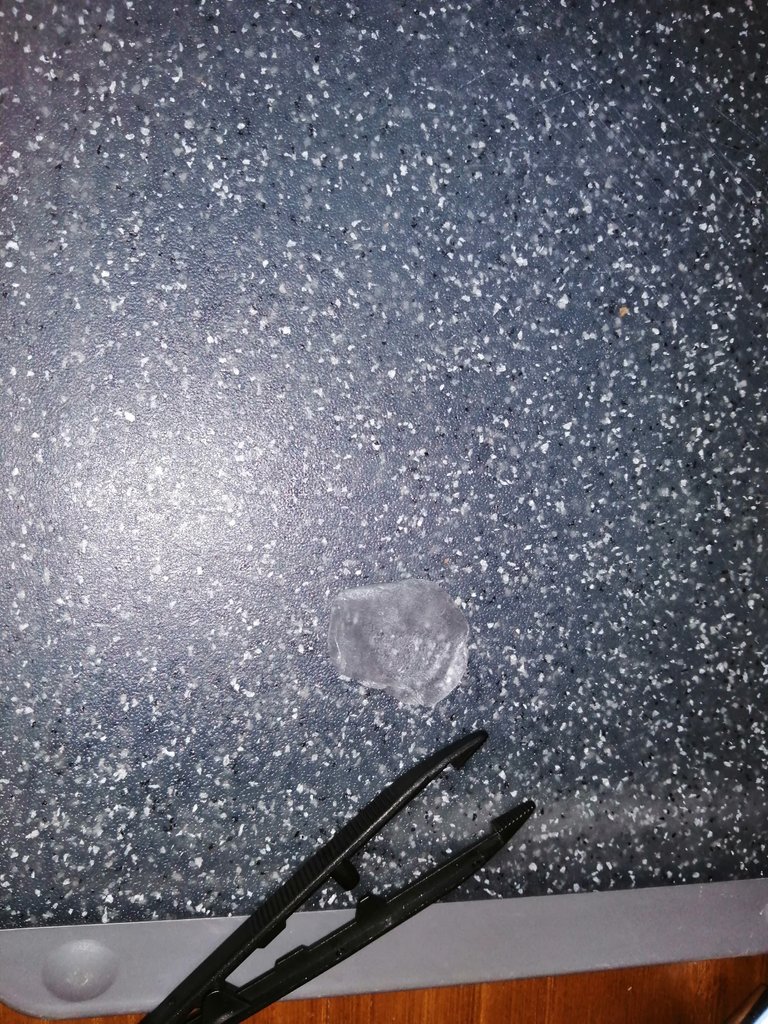

The next step is to separate the fine tissue from a concave portion of the onion! we are going to take it with a tweezers or with our fingers, the layer is resistant so you don't have to be very careful! but don't be too rough to break it either!🧤🥽
El siguiente paso es separar el tejido fino de una porcion concava de la cebolla! vamos a tomarlo con una pinza o con los dedos, la capa es resistente asi que no tienes que ser muy cuidadoso! pero tampoco ser muy brusco para romperla!🕶🥼🥽



With the scalpel we are going to make a small cut, we cannot work with the entire layer, so we will require a small portion that is a measure that fits in the cover object!😍😍
Con el bisturi vamos a realizar un pequeño corte, no podemos trabajar con toda la capa, por lo que requeriremos una pequeña porcion que sea una medida que quepa en el cubre objeto! 🤔👨‍🏫

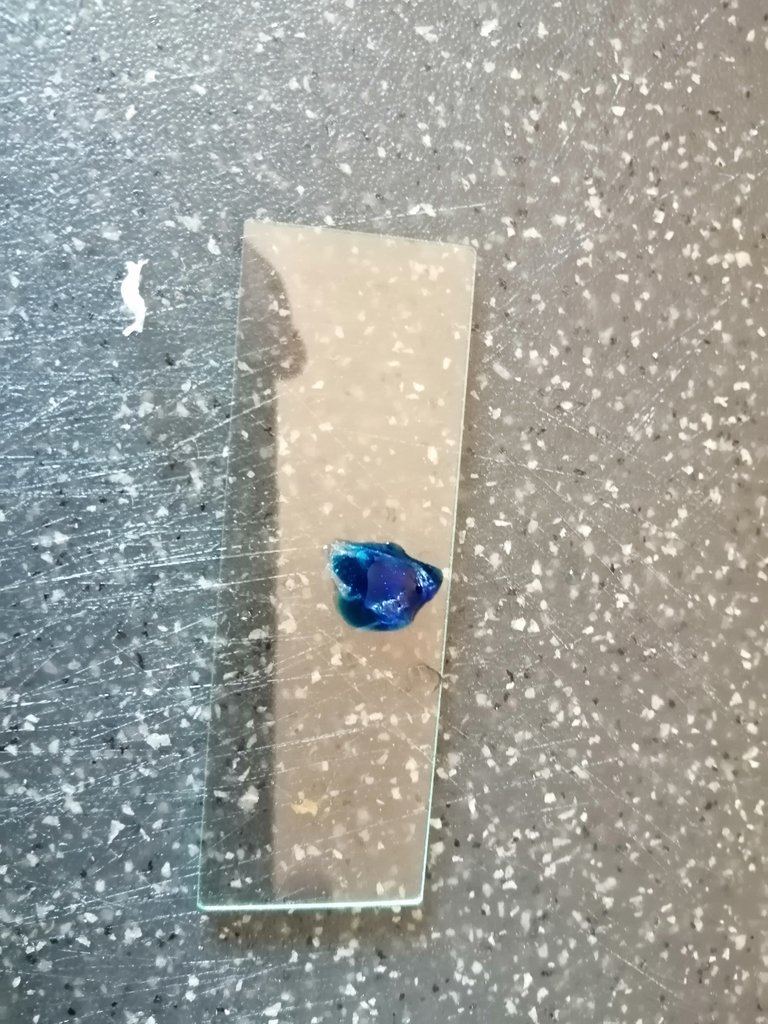

The next thing is to dilute my methylene blue, basically it is a dye that stains the genetic material in animal cells, methylene blue has a chemical peculiarity so it can penetrate the cell wall and adhere to the nucleus!💙💙
Lo siguiente es diluir mi azul de metileno, basicamente es un colorante que tiñe el material genetico en las celulas animales, el azul de metileno tiene un particularidad quimica por lo cual puede penetrar la pared celular y adherirse al nucleo!💦💥

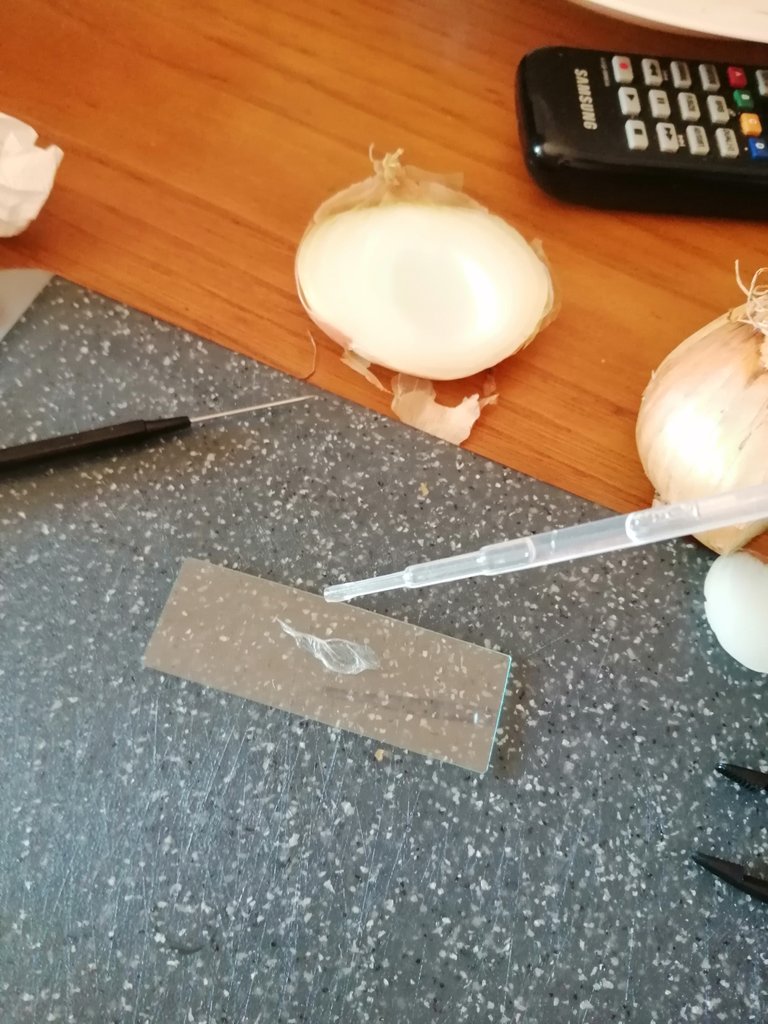

We go on to the fixation phase when cutting the tissue, we will add one or two drops of water to fill the cell so that it can expand, then we will place the methylene blue all over the tissue and we will wait 5 minutes, which is the time it takes to enter the cell!😍😍
Pasamos a la fase de fijacion al corte del tejido vamos añadirle una o dos gotas de agua para llenar la celula y que pueda expandirse, luego vamos a colocar el azul de metileno por todo el tejido y esperaremos 5 minutos que es el tiempo que demorar para entrar en la celula!👨‍🏫👨‍🎓


Cells act as an open system in which an exchange of matter and energy with the environment is constantly taking place. These organisms are capable of admitting or eliminating those materials that they need for their metabolism. Both the cells that make up the onion and those of being human are eukaryotic cells. These types of cells are those that store genetic material in a nucleus enclosed in a membrane. By contrast, prokaryotic cells are those whose genetic material is found throughout the cytoplasm.🙂🙂
Las células actúan como un sistema abierto en el que sucede constantemente un intercambio de materia y energía con el entorno. Estos organismos son capaces de admitir o eliminar aquellos materiales que necesitan para su metabolismo. Tanto las células que componen la cebolla como las de ser humana son células eucariotas. Este tipo de células son aquellas que guardan el material genético en un núcleo encerrado en una membrana. Por el contrario, las células procariotas son aquellas cuyo material genético se encuentra por todo el citoplasma.🧫🧪

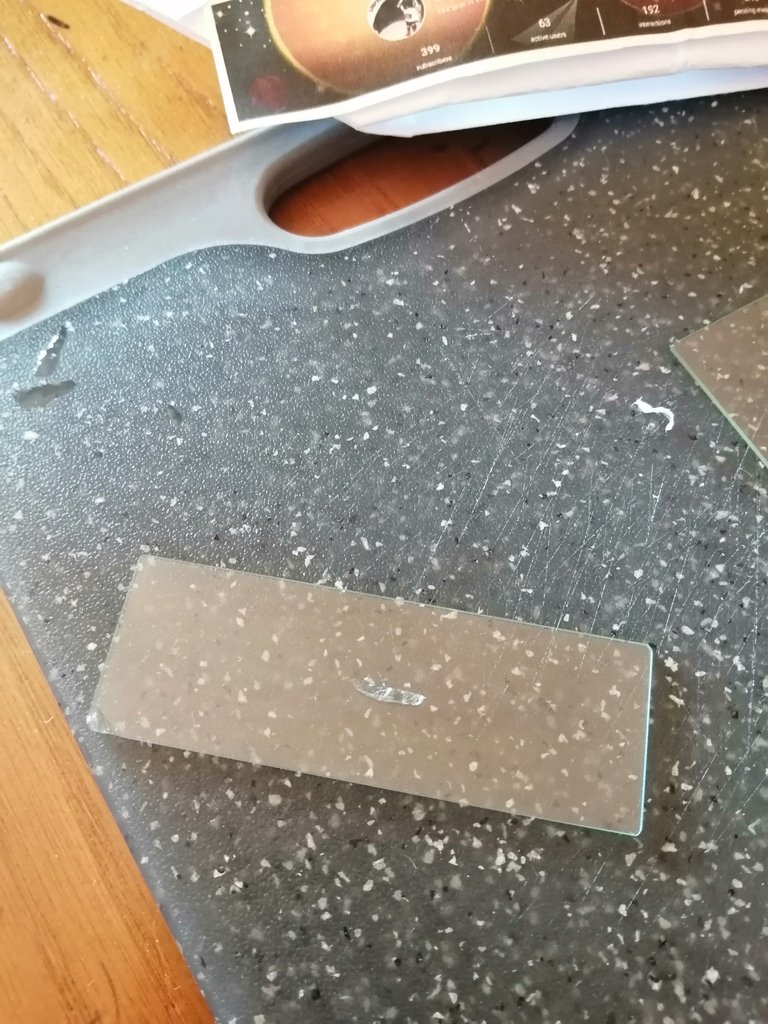

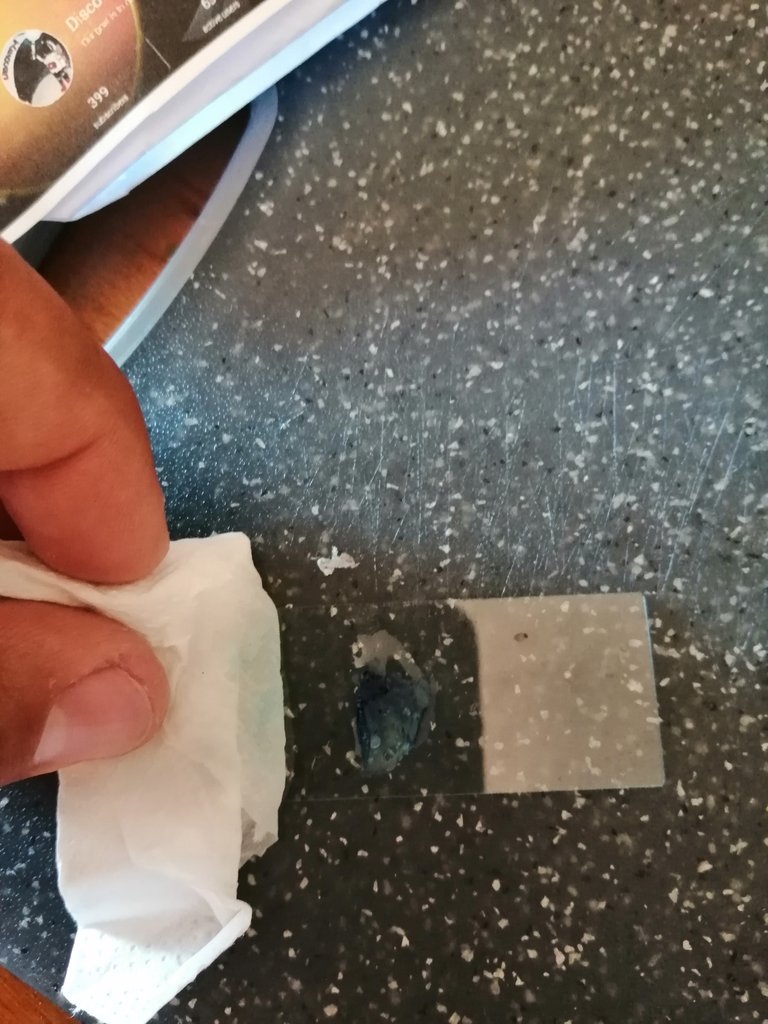

To compare the difference that the use of a coloring agent makes in a sample, I have also prepared a fabric sample without dyeing it, after 5 minutes we will clean the blue with the dropper, then with a napkin, paper we clean the excess liquid!😍😍
Para comparar la diferencia que hace en una muestra el uso de un agente colorante tambien he preparado una muestra de tejido sin teñirla, pasado 5 minutos vamos limpiar el azul con el gotero, luego con una servilleta, papel limpiamos el exceso de liquido!💦💦

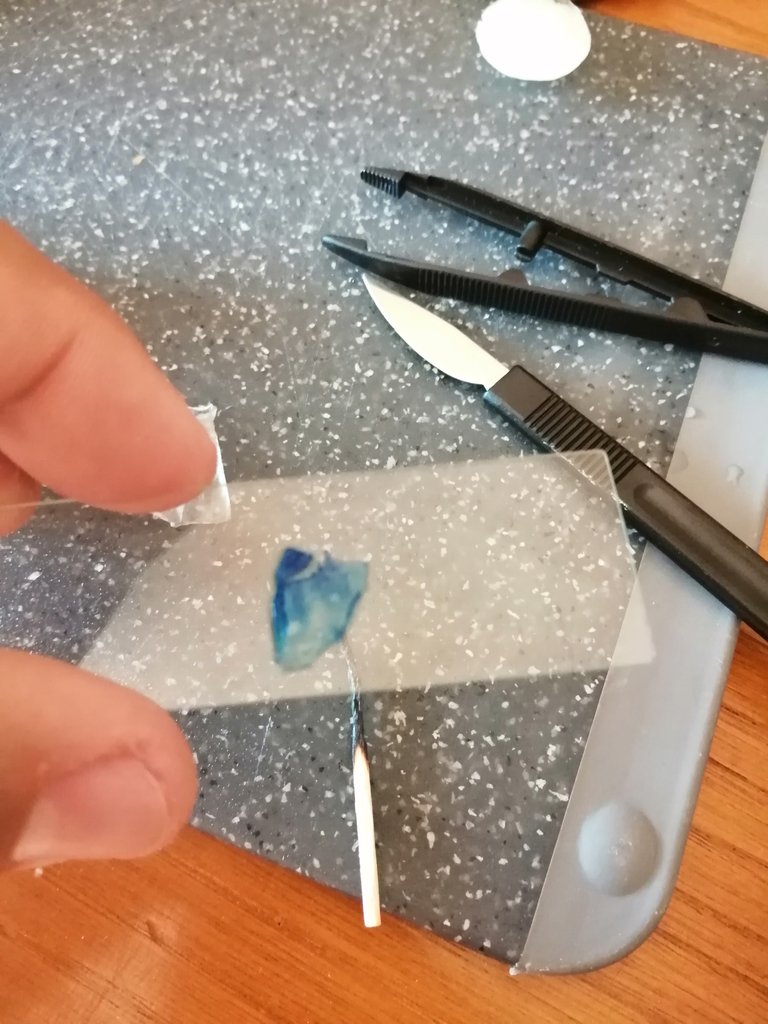

we will fix the sample! How do we do it? we will use the heat for that! This part is very important to remove the water and fix the dye to the sample so we get a dry sample! we will pass the fire under the sample, but we NEVER apply direct heat in the same place! we must spread the heat! until we see that the water disappears! then carefully we place the coverslip!💙💙💙💥💥
vamos a fijar la muestra! como lo hacemos? utilizaremos el calor para eso! esta parte es muy importante para retirar el agua y fijar el colorante a la muestra asi obtenemos una muestra seca! pasaremos el fuego por debajo de la muestra, pero NUNCA aplicamos calor directo en un mismo sitio! debemos esparcir el calor! hasta que vemos que el agua desaparece! luego con cuidado colocamos el cubreobjeto!💥

46aP2QbqUqBqpx5c7Zikd2HFMqywJNqDeZVr22vYLLq3mmDMvC912rHeamQEXiUYc8W1m6jHtynNypZj6yjtJSv99K26.png

OBSERVATION?🙂🔬🧅🧅⛔


We place our samples on our work table, turn on the microscope and place the smallest objective, in my case 40x, you should always observe samples from the smallest objective to the largest! and we analyze what we observe with bibliographic reference in my case as I have experience in this subject I know what I am observing!🤗🤗
colocamos nuestras muestras en nuestra mesa de trabajo encendemos el microscopio y colocamos el objetivo mas pequeño en mi caso 40x siempre se deben observas muestras desde el objetivo mas pequeño al mayor! y analizamos lo que observamos con referencia bibliografica en mi caso como tengo experiencia en este tema se lo que estoy observando!👨‍🏫👨‍🎓


There are two techniques to observe the epidermis of the onion with an optical microscope: the first is by making fresh preparations (that is, without dye) and the second by staining the sample with methylene blue, methyl acetate green or lugol. The various structures that make up the epidermis of the onion are divided into macroscopic and submicroscopic. Microscopic are those structures that can be observed through the light microscope, such as the cell wall, the nucleus and the vacuoles.🤗🤗
Existen dos técnicas para observar la epidermis de la cebolla con un microscopio óptico: la primera es realizando preparaciones al fresco (es decir, sin colorante) y la segunda tiñendo la muestra con azul de metileno, verde de metilo acetato o lugol. Las diversas estructuras que componen la epidermis de la cebolla se dividen en macroscópicas y submicroscópicas. Las microscópicas son aquellas estructuras que pueden observarse a través del microscopio óptico, como la pared celular, el núcleo y las vacuolas.😏😮


For example, with the light microscope the cell wall is visible but the microfibrils that make up the cellulose of the cell wall are not. The level of organization of the structures becomes more complex as the study of ultrastructures progresses.😁😁
Por ejemplo, con el microscopio óptico es visible la pared celular pero no lo son las microfibrillas que conforman la celulosa de la pared celular. El nivel de organización de las estructuras se va haciendo más complejo a medida que se avanza en el estudio de las ultraestructuras.👨‍🏫👨‍🎓

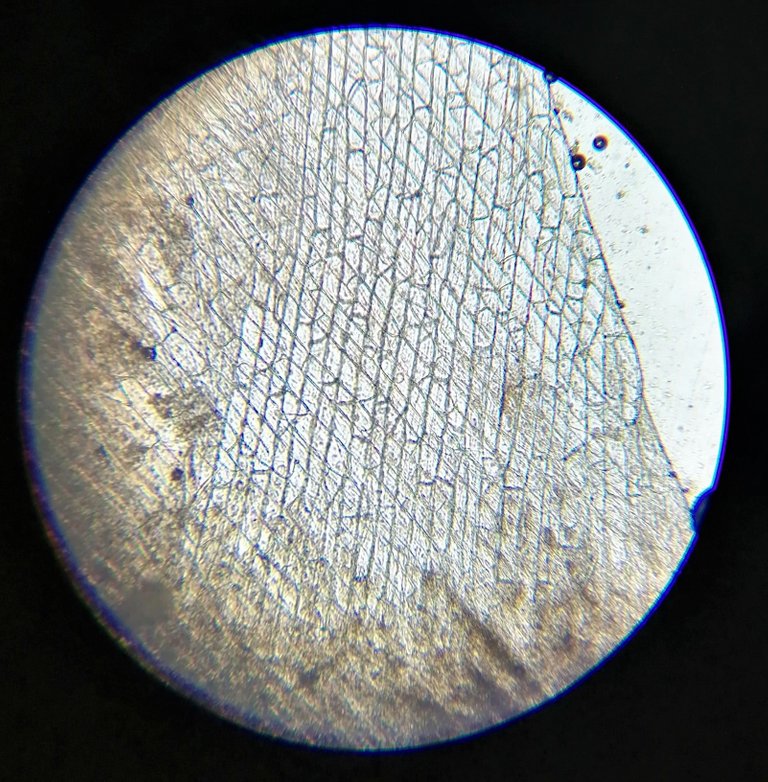

The cells of the epidermis of the onion are longer than they are wide. In terms of shape and size, they can be highly variable: some have 5 sides (pentagonal cells) and others 6 sides (hexagonal cells).👨‍🎓👨‍🏫
Las células de la epidermis de la cebolla son más largas que anchas. En cuanto a forma y tamaño, pueden ser muy variables: algunas poseen 5 lados (células pentagonales) y otros 6 lados (células hexagonales).🧫🔬

46aP2QbqUqBqpx5c7Zikd2HFMqywJNqDeZVr22vYLLq3mmDMvC912rHeamQEXiUYc8W1m6jHtynNypZj6yjtJSv99K26.png

EXPLANATION🙂🔬🧅🧅⛔

46aP2QbqUqBqpx5c7Zikd2HFMqywJNqDeZVr22vYLLq3mmDMvC912rHeamQEXiUYc8W1m6jHtynNypZj6yjtJSv99K26.png

DYED CELLS🙂🔬🧅🧅⛔

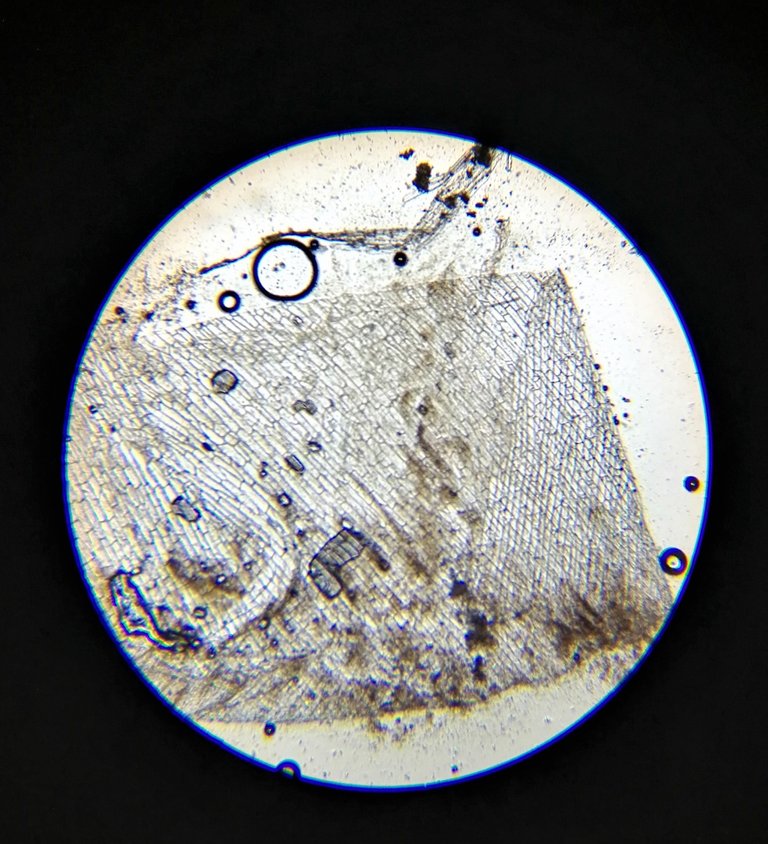

In the video I explained to you how there is a difference when we use a compound to dye in the video you only observe the cells, we cannot distinguish the cell wall and much less the nucleus but when I change the sample we can see many details!😋
En el video te explicaba como existe una diferencia cuando usamos un compuesto para teñir en el video solo observas las celulas, no podemos distinguir la pared celular y mucho menos el nucleo pero cuando cambio de muestra podemos ver muchos detalles!💥💥💯


The light microscope shows that the cells are delimited by the cell wall. This wall is much better seen if some colorant is applied. By studying the cell arrangement it can be seen that the cells are located next to each other in close relationship, forming a network in which each cell resembles a cell. It is known that the cell wall is composed mainly of cellulose and water, and that this hardens as the cell reaches its full maturation. Therefore, the wall represents the exoskeleton that protects and provides mechanical support to the cell.😏😏
Al microscopio óptico se evidencia que las células están delimitadas por la pared celular. Esta pared se observa mucho mejor si se aplica algún colorante. Al estudiar la disposición celular se puede ver que las células se encuentran una al lado de la otra en estrecha relación, formando una red en la que cada célula semeja una celda. Se sabe que la pared celular está compuesta principalmente de celulosa y agua, y que esta se endurece a medida que la célula alcanza su maduración completa. Por ello, la pared representa el exoesqueleto que protege y brinda sostén mecánico a la célula.😮😮





The nucleus of each cell will also be better defined by adding methylene blue or lugol to the preparation. In the preparation you can see a well-defined nucleus located on the periphery of the cell, slightly ovoid and surrounded by cytoplasm, basically the nucleus stores the genetic material😏😏
El núcleo de cada célula también se verá mejor definido al agregar a la preparación azul de metileno o lugol. En el preparado se puede ver un núcleo bien definido ubicado en la periferia de la célula, ligeramente ovoide y rodeado de citoplasma, basicamente el nucleo guarda el material genetico🧬🧬



The protoplasm is surrounded by a membrane called the plasmalemma, but it is hardly visible unless the protoplasm is retracted by adding salt or sugar; in this case the plasmolemma is exposed.🙂🙂
El protoplasma está rodeado por una membrana llamada plasmalema, pero casi no es visible a menos que se retraiga el protoplasma colocando sal o azúcar; en este caso el plasmolema queda al descubierto.😮

46aP2QbqUqBqpx5c7Zikd2HFMqywJNqDeZVr22vYLLq3mmDMvC912rHeamQEXiUYc8W1m6jHtynNypZj6yjtJSv99K26.png

EXPLANATION🙂🔬🧅🧅⛔

46aP2QbqUqBqpx5c7Zikd2HFMqywJNqDeZVr22vYLLq3mmDMvC912rHeamQEXiUYc8W1m6jHtynNypZj6yjtJSv99K26.png



Although the cells that make up the epidermis of the onion are plants, they do not have chloroplasts, since the function of the vegetable (bulb of the onion plant) is to store energy, not photosynthesis. Therefore, the cells of the onion epidermis are not typical plant cells. Its shape is directly related to the function they fulfill within the onion: the onion is a tuber rich in water, the cells of the epidermis give the onion its shape and are responsible for retaining water.🥽🥼🧤
A pesar de que las células que componen la epidermis de la cebolla son vegetales, estas no poseen cloroplastos, pues la función de la hortaliza (bulbo de la planta de cebolla) es almacenar la energía, no la fotosíntesis. Por lo tanto, las células de la epidermis de la cebolla no son células vegetales típicas. Su forma está directamente relacionada con la función que cumplen dentro de la cebolla: la cebolla es un tubérculo rico en agua, las células de la epidermis le dan la forma a la cebolla y son las encargadas de retener el agua.🔬🧫🧬

46aP2QbqUqBqpx5c7Zikd2HFMqywJNqDeZVr22vYLLq3mmDMvC912rHeamQEXiUYc8W1m6jHtynNypZj6yjtJSv99K26.png

46aP2QbqUqBqpx5c7Zikd2HFMqywJNqDeZVr22vYLLq3mmDMvC912rHeamQEXiUYc8W1m6jHtynNypZj6yjtJSv99K26.png

THANKS FOR READING ME🙂, PHOTOS OF MY PROPERTY🧠🦾👍⛔


https://www.fundacionaquae.org/celulas-capa-cebolla/
http://cienciasnaturales.iesvegadelturia.es/wp-content/uploads/2016/03/2.-Observaci%C3%B3n-del-tejido-epid%C3%A9rmico-de-la-cebolla.pdf
http://www.iescarbula.net/materias/byg/practicas/celulas%20de%20la%20epidermis%20de%20cebolla.htm
https://www.lifeder.com/epidermis-de-cebolla/
