Making a construction must start from the basic concept, namely planning, both in writing and in pictorial. Making it easier for someone to work on the construction. Not only that, the concept of the image that you want to work on also makes it easier for all parties involved there.

Here I want to tell you a little about planning a building construction, from drawing plans to real construction.

Planning a building must start from a plan drawing that will be worked on at a later date, this plan drawing will be the main concept / handle of the people involved in this construction, starting from the construction owner, construction workers and construction supervisors. Unlike the case with the construction stipulated by the government, there will be special teams involved to ascertain whether the construction is feasible or in accordance with the plan drawings.

This work is a program of a construction owner or an owner of an educational place located in one of the provinces in Indonesia, to be precise in Aceh Darussalam. This work is privately owned or privately owned and is not related to government.

My job here is to plan construction drawings according to the concept desired by the owner, as architectural or civil engineering I must be able to plan according to demand. Not only that, the drawings I make must be understood by construction workers, so that at the time the work runs smoothly without any obstacles.

Plan Drawing


The first steps I have to do is check the location or placement of the construction. Since this construction is a continuation of the basic construction there, I have to measure the existing construction (existing construction) and the area of land that will be used as the public bathroom. As usual, the tools I use are measuring tools, writing tools for basic sketches and other tools to assist in this measurement.

If the results at the site have been obtained and the images or images for the construction have been understood, the next job is to draw the construction at a more understandable size or scale. To draw the construction I used the Auto-Cad application which is supported by windows, the inj application can be said to be a basic application for drawing construction and this application is not available in perfect 3D drawings.

The first step is to make a location marker for the construction site to be built in the future. As shown below.

Lokasi pekerjaan/Job location


Next, make a construction that already exists at that location, its function is to make it easier for workers to see the plan drawings we have made.

Gambar Existing/Existing Plan or Drawing


Then combine the existing drawings with the plan drawings, so that they become the desired construction.

Denah Rencana/Plan or plan drawing


Then make a drawing of the location point for the building construction foundation, this is the most important drawing to determine the size of the construction.

Denah pondasi tapak/Foundation layout


Mark the points where the building construction poles are located to make the job easier.

Denah kolom/Location of construction poles


If the steps above have been carried out, now make the plan a view of the building visible from the front, with the size specified by the owner.

Tampak Depan/Front view of construction


And also the view from the left side, for complete images that make it easy for everyone to see on the job site.

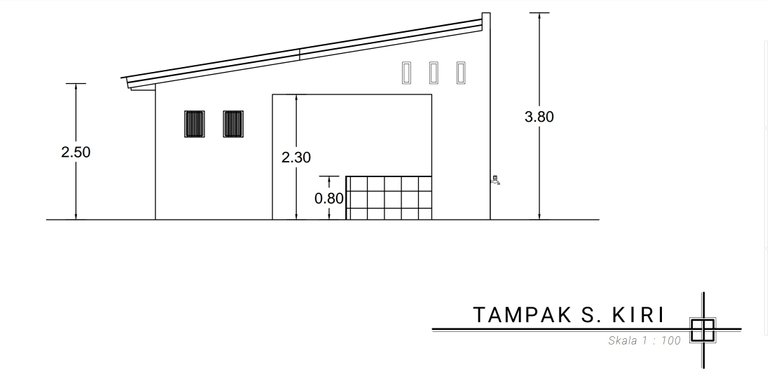

Tampak S. Kiri/Construction view from the left side


Likewise with the display on the right side.

Tampak S. Kiri/Construction view from the right side


Then make drawings for the details of the construction of the building, its function is so great for the work in progress. The existence of this image will facilitate the process of completing the construction as expected, this is one of the most needed drawings.

Details of building construction


Well, if some of the pictures above have been made, the building construction process can already be done. If you want to make the plan more perfect, add details such as iron details, concrete mold details, roof details and other details. Since it was for this job that the process owner did not want more refined details, I did not create them. Maybe in the future I will share it here.

As you can see in the photo below, this is the base location for forming the construction. I keep it as a document and for comparison when I make plans.

The location that will be used as a public bathroom building construction


Below is a photo of the bathroom building construction work, view from the front.

At the time of the work process


During the work process, a side view


The building construction is still ongoing or not yet finished, so I can't share photos of the completion of building construction like this plan image, maybe in the next post I will discuss this. When viewed from the ongoing process, the construction is exactly the same as what is in the plan drawing.

The steps above are sufficient to tell about the process of planning a building construction, in the most basic way and can be used as a basis for planning a construction that will be built in the future.

Leave your comment if you have something to ask about construction. Hopefully it can be a learning motivation for all.
