[ESP/ENG]Instalación de planta de automóvil/Automobile plant installation

avatar

Sin título 1.png

Hola querida comunidad, sean todos bienvenidos a esta publicación. Para los amantes del sonido, hoy les explicare como instalar una planta de sonido para un par de medios y un bajo, me daba mucha curiosidad aprender a montarlo yo mismo, fui para donde un primo que instala sonidos y le preguntaba mucho, para que sirve este cable, por que se conecta esto así, de tanto preguntar pues empecé yo mismo a instalar y ahora disfruto haciéndolo y vienen todos mis amigos a que les monte el sonido en sus carros, para mi es un hobby muy bonito.

Hello dear community, everyone welcome to this publication. For sound lovers, today I will explain how to install a sound plant, for a couple of mids and a bass, I was very curious to learn how to assemble it myself, I went to a cousin who installs sounds and asked him a lot, why This cable is useful, because this is connected like this, from asking so much because I started installing myself and now I enjoy doing it and all my friends come to have the sound mounted on their cars, for me it is a very nice hobby.

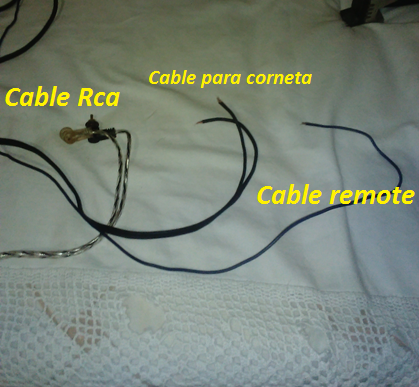

Los materiales que necesitamos, 3 metros de cable numero 8 para el positivo de la planta, 1/2 de cable numero 8 para el negativo de la planta, 2 metros de cable muy delgado que nos va servir para el remote que es el que va dar la orden de encender o apagar la planta, 6 metros de cable de corneta para los medios y el bajo y 2 cables rca, les recomiendo que tengan una planta monoblock que nos va servir para los medios y bajos.

The materials we need, 3 meters of cable number 8 for the positive of the plant, 1/2 of cable number 8 for the negative of the plant, 2 meters of very thin cable that will serve us for the remote that is the one that goes Give the order to turn the plant on or off, 6 meters of cornet cable for the mids and bass and 2 rca cables, I recommend that you have a monoblock plant that will serve us for the mids and basses.


El primer paso, buscar un espacio por donde pasar el cable positivo desde el motor hacia el interior del carro, para conectarlo al positivo de la batería y así poderle llevar corriente a la planta, luego buscar una tierra para el negativo, puede ser del tornillo de un asiento o algun tornillo que vaya al chasis con eso le daremos el negativo a la planta.

The first step is to find a space where the positive cable can pass from the motor to the inside of the car, to connect it to the positive of the battery and thus be able to carry current to the plant, then look for a ground for the negative, it can be from the screw of a seat or some screw that goes to the chassis with that we will give the negative to the plant.

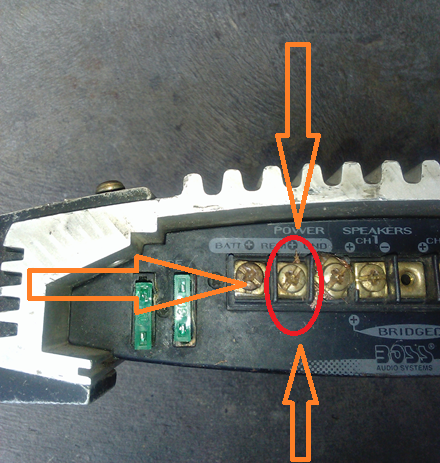

El segundo paso, procedemos a buscar el remote, el cual se va encargar de cuando prender y apagar la planta, esta cable lo buscamos en el estereo del carro, es que nos va a servir de apagador. luego lo conectamos a la planta entre el cable positivo y el negativo.

The second step, we proceed to look for the remote, which will take care of when to turn the plant on and off, we look for this cable in the stereo of the car, it is going to serve as a switch. then we connect it to the plant between the positive and negative wire.


Tercer paso, conectamos los cables rca que son los que enviaran el sonido del estereo a planta y a su vez envía el sonido hacia los medios y los bajos que es su función como tal, ella lo que hace es amplificar el sonido para tener un mejor audio. Se utilizan dos cables rca uno le enviará la señal a los bajos y el otro a los medios.

Third step, we connect the rca cables that are the ones that will send the sound from the stereo to the floor and in turn send the sound towards the mids and the bass which is its function as such, what it does is amplify the sound to have a better audio . Two rca cables are used one will send the signal to the bass and the other to the mids.

Sin título.png

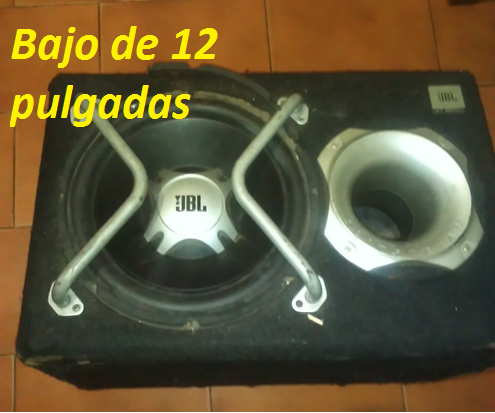

Cuarto paso, conectamos los cables que van de la planta a las cornetas o medios, esos cables van de la salida de la planta hacia los medios y otro que va de la planta a los bajos, mi planta monoblock tiene 2 salidas de 2 canales cada una, un canal la utilizaremos para los medios y el otro canal para los bajos, con eso tendríamos el sonido ahora a sonar.

Fourth step, we connect the cables that go from the floor to the horns or media, those cables go from the floor outlet to the middle and another that goes from the floor to the ground floor, my monoblock floor has 2 outputs of 2 channels each one, we will use one channel for the mids and the other channel for the bass, with that we would now have the sound to play.


Para finalizar, les daré un truco para poner a sonar los bajos más duro, buscamos donde hicimos la conexión del bajo a la planta, como son dos salidas, vamos a tomar la salida de una salida el positivo y de la otra tomaremos el negativo, eso se llama una conexión moneada. Espero les sirva, gracias por leerme.

To finish, I will give you a trick to make the bass sound harder, we look for where we made the connection of the bass to the floor, as there are two outputs, we are going to take the positive output from one output and the negative output from the other, that's called a monetary connection. I hope it serves you, thanks for reading me.

conexion moneada.png

Imágenes tomadas con un Orange Roya.

Images taken with an Orange Roya.
