Building an open air computer

avatar

Normally PCs are enclosed in a case, with good airflow pulling cold air from the front and blasting the hot air out the rear. But there are other types of computer cases that are completely open. It is mostly for looks, as its pretty cool seeing the computer on and running while everything is exposed. Needing a new rig, I took my Lian Li case out and got to work setting it up.

I got myself a Lian Li Pitstop PC-T60A open computer case. They also refer to them as test benches. This one is black, but they also come in silver. I added two 120MM fans to the front of the case as well for better airflow. I may use this rig in the winter for mining so I will need some good fans blowing on the cards.

Using an older Ryzen 7 CPU and motherboard I just needed some RAM and a m.2 drive. I tried building it with a HDD I had laying around but it was very slow making ubuntu take five or so minutes to boot up. With an m.2 nvme drive it takes around thirty seconds or less now.

With a 750W power supply mounted, a fan controller and the two 120MM fans it was ready to install the motherboard.

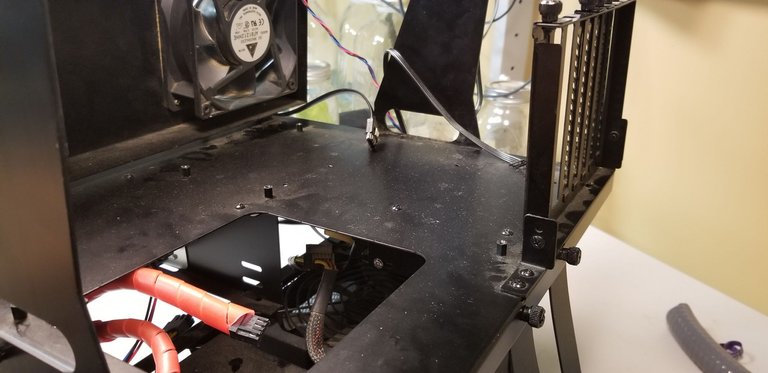

Stand offs make for easy installation of the board, there is also bottom access, maybe to help change heat sinks without removing the motherboard from the case. Or maybe it just helps to keep the bottom of the CPU and motherboard cooler.

To install the motherboard I needed to lower the back plate where the video card is attached. This will allow me to slide in the motherboard.

Since all I had was a motherboard and CPU, I bought 32GB of RAM and a 500GB m.2 drive.

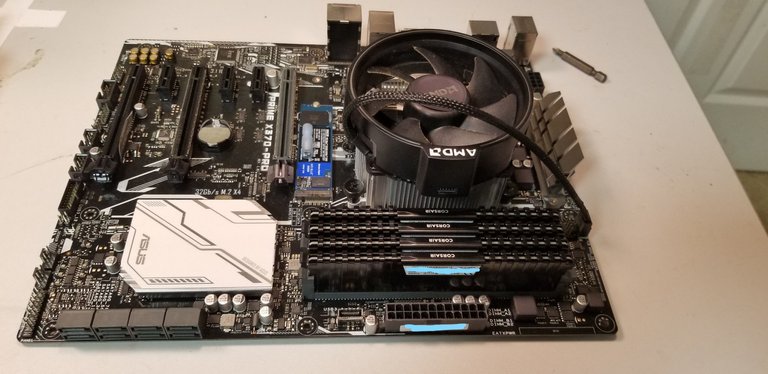

With the RAM installed and the drive screwed in it was ready to be mounted in the case.

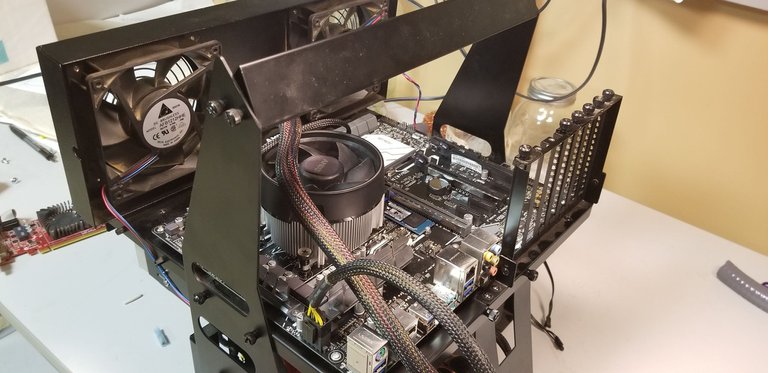

Now that the motherboard is installed, I can start attaching power cables and such.

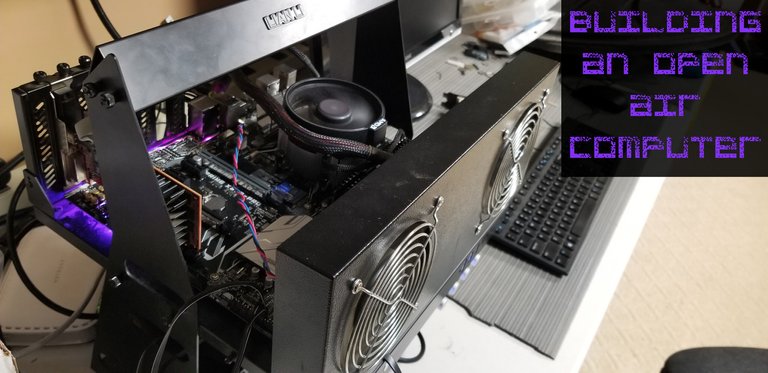

Just about everything is attached at this point, just enjoying the views of the open computer case. Its like seeing whats under the hood, all the time.

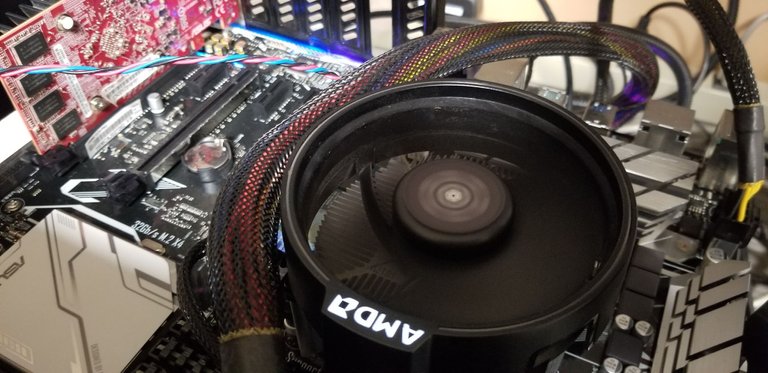

The weakest link in this build is this GPU, its a Radeon R7 card with a missing fan. I had to remove it after it starting squeaking real bad. So now it runs with a passive heatsink..lol I have been running it this way for a few years now and the card is still alive.

Those 120MM fans I mounted to the front of the Lian Li case will help to keep the card cool. Along with the memory and maybe help the CPU a little. Though mostly the GPU needs some cooling with its missing fan.

I boot up the machine and get to installing Ubuntu 20.04 LTS (Focal Fossa) on it.

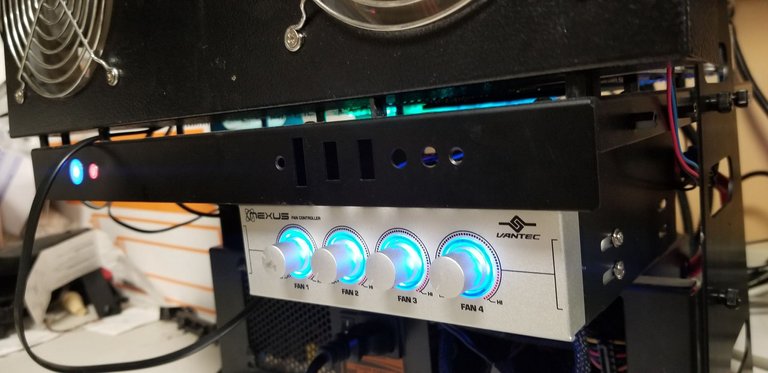

With the fan controller I can change the speed of the fans on the fly, without needing to go into the BIOS to adjust fan speeds. I think the 120MM fans in the front will really help, especially when mining in the winter. I just hope I can fit my full size Nvidia GTX 1080s in it. Will be a tight fit but if it works they should work well on this machine. I may need to reformat, or attempt to change the video drivers as it was built with a Radeon card and not a GTX. I may just reformat to save myself the troubles of dealing with weird errors. But thats many months from now since we are in the middle of the summer right now.
